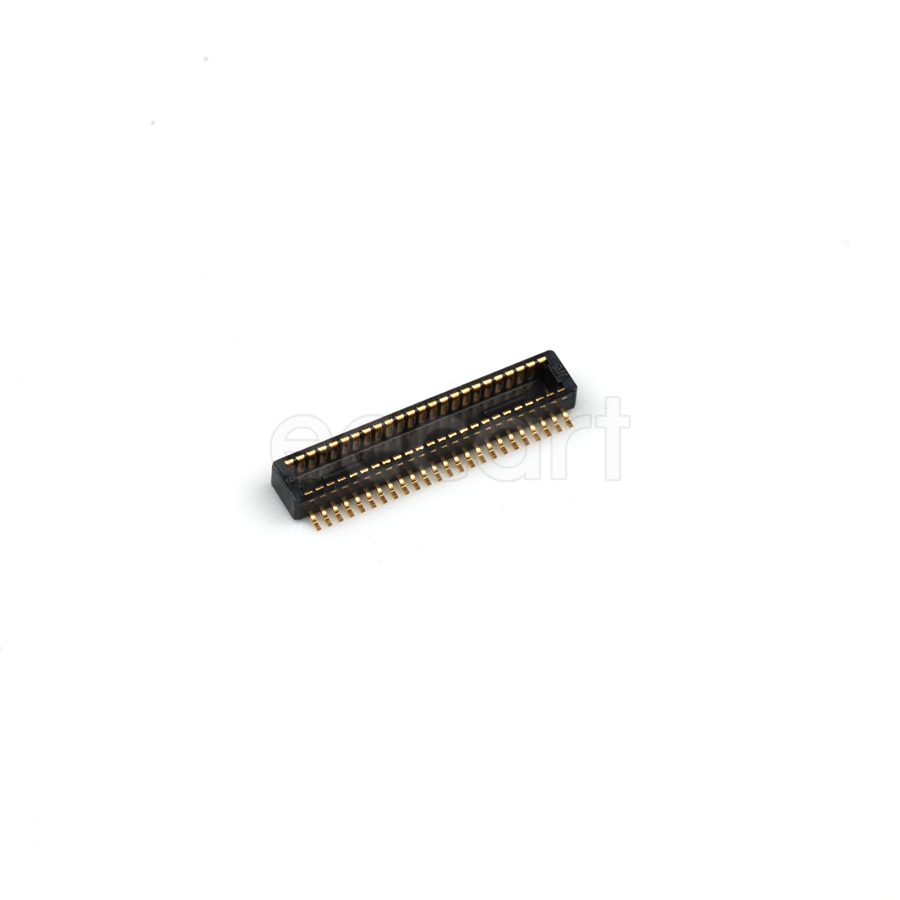

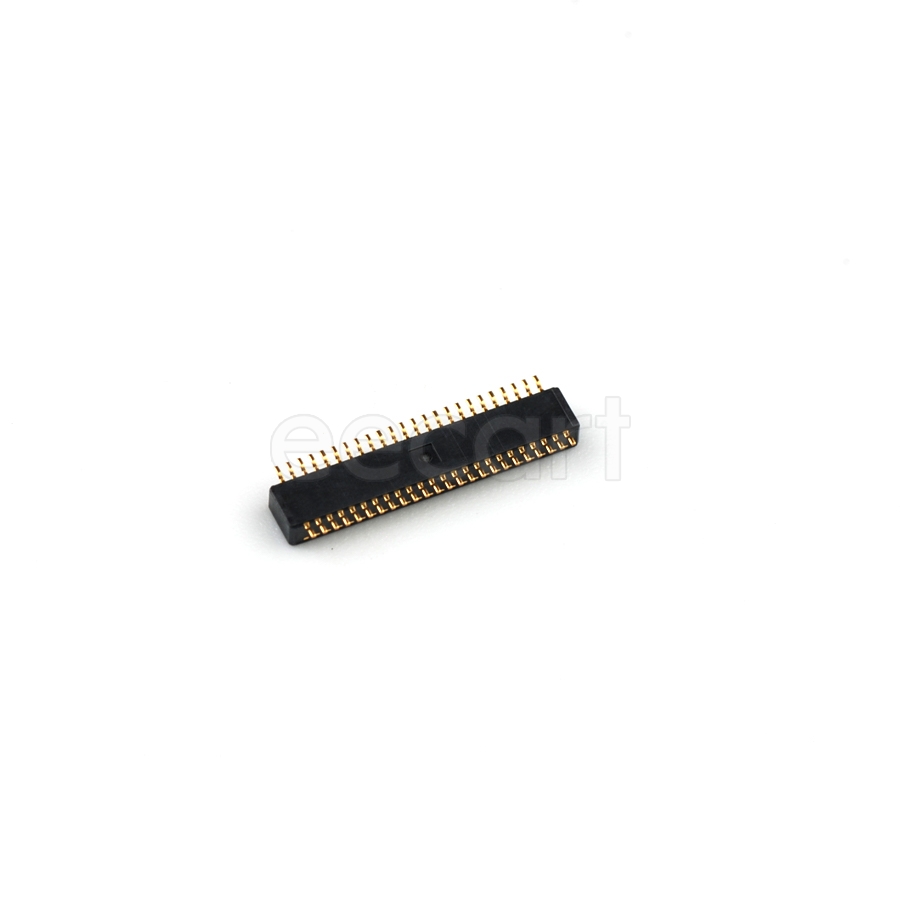

DF40C-40DP-0.4V(51)
Manufacturer:
Hirose Electric
Mfr.Part #:
DF40C-40DP-0.4V(51)
Datasheet:
Description:
Board to Board Connectors SMD/SMT Plug Number of Positions:40 Number of Rows:2 Pitch:400 µm
| Parameter | Value |
|---|---|
| Length | 9.52 mm |
| Width | 2.97 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -35 °C |
| Height | 1.14 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 400 µm |
| Current Rating | 300 mA |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Gender | Male |
| Number of Contacts | 40 |
| Connector Type | Plug |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Housing Material | Polymer |
| Contact Resistance | 90 mΩ |
| Housing Color | Black |
| Mated Stacking Heights | 4 mm |
| Contact Voltage Rating (AC) | 30 V |
| Contact Voltage Rating (DC) | 30 V |
| Contact Pitch | 0.4 mm |
| Mounting Angle | Vertical |
Stock: 2662
Distributors
pcbx
pcbxUnit Price$0.39514
Ext.Price$0.39514
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.39514 | $0.39514 |
| 10 | $0.30854 | $3.08540 |
| 50 | $0.26469 | $13.23450 |
| 100 | $0.22708 | $22.70800 |
| 500 | $0.19895 | $99.47500 |
| 1000 | $0.18702 | $187.02000 |
